260m Deep Crawler Mounted Hydraulic Water Well Drill Rig RCF260C Water Well Drilling Rig Machine
Machine Description
RCF260C deep water well drilling rig is a product independently developed by our company. The new generation of down-the-hole drilling rigs combined with greater pneumatic power have played an important role in increasing drilling speed.
Adopting the latest model and advanced hydraulic technology, it has low consumption, large rotation torque, convenient hole deflection,Made of high-quality materials, stylish and compact design, it makes the drilling rig more efficient, with low failure rate, more economical and durable, and high comprehensive cost performance. Our water well drilling rigs have been truly verified by the market and have received positive feedback from most customers.
Technical Parameters
| Bore diameter(Hammer) | 90-350mm |
| Bore depth | 260m |
| Air consumption | 17-35m³/min |
| Air pressure | 1.7-3.0Mpa |
| Pipe diameter | 76mm/89mm |
| Pipe length | 3m |
| Push force | 4T |
| Lifting force | 15T |
| Lifting speed | 2.5m/min |
| feeding speed | 0.5-5m/min |
| Fast lifting speed | 24m/min |
| Fast feeding speed | 35m/min |
| Max torque of the rotary | 4000-5300Nm |
| Rotary speed | 45-70r/min |
| Mud Pump flow | 200L/min (option) |
| High hydraulic leg | 1.5m |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 4×1.85×2.3M |
| Weight | 6500Kg |
| Diesel engine | 70KW FAW engine |
Application
The RCF260C rig mainly used for drilling of resource exploration and hydrological wells, civil water wells, agricultural irrigation and other projects.
Our Service
Provide 24/7 online chat and phone services to ensure that customers are always available to solve problems and provide support. In addition, lifetime free technical support is provided, allowing customers to enjoy continuous help and guidance during use. For overseas customers, we also provide overseas services and can dispatch engineers to provide support and services as needed to ensure that customers can enjoy high-quality services around the world.

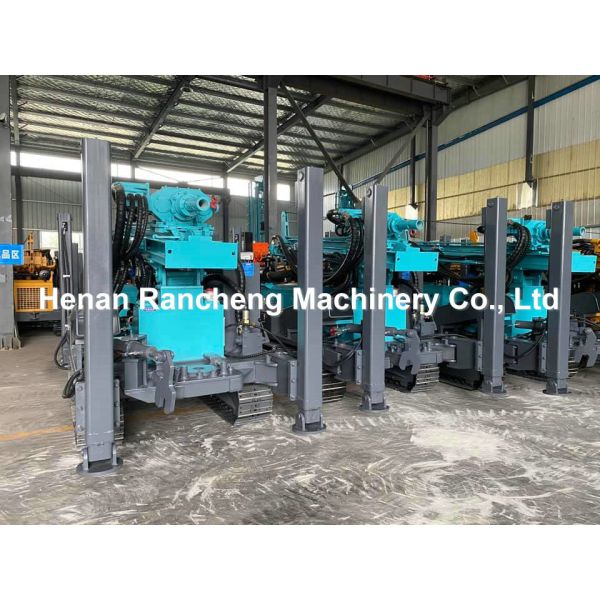

Machine picture display
|
|
260m Deep Crawler Mounted Hydraulic Water Well Drill Rig RCF260C Water Well Drilling Rig Machine Images
|
