3500-3800Nm Max Torque of Rotary 150m Drilling Water Well Machine
Products Description
The RCF150S small water well drilling rig is a dual-mode drilling equipment innovatively developed by our company. It integrates two advanced technologies, pneumatic down-the-hole impact and mud circulation rotation, and can efficiently cope with various complex geological conditions, especially in hard rock formations. It shows excellent penetration ability and significantly improves the progress of the project.
This equipment is forged with military-grade alloy materials, and a sophisticated fuselage layout is achieved through modular design, which ensures structural strength while also being aesthetically pleasing. After verification under harsh working conditions, its stability and durability are outstanding, and its maintenance cost is only 60% of the industry average, and its return on investment leads similar products. At present, it has formed a stable customer base in more than 30 countries, and the on-site operation data continues to refresh the industry benchmark.
It is particularly noteworthy that this model has successfully obtained the EU CE safety certification, and all technical indicators have met the requirements of ENISO international standards. It has become a designated procurement product for European engineering contractors, and its overseas annual sales have maintained a growth trend of 120% for three consecutive years.
Machine Specifications
| Bore diameter(hammer) | 90-300mm |
| Bore depth | 150m |
| Air consumption | 17-31m³/min |
| Air pressure | 1.7-2.5Mpa |
| Once-time advance length | 2.4m |
| Pipe diameter | 76mm/89mm |
| Pipe length | 2m |
| Push force | 4T |
| Lifting force | 12T |
| Max torque of rotary | 3500-3800Nm |
| Rotary speed | 40-65r/min |
| Mud Pump flow | 200L/min (option) |
| Feeding efficiency | 10-35m/h |
| Travel speed | 2.5Km/h |
| Climb ability | 30° |
| Dimension(L*W*H) | 2300×1200×1900MM |
| weight | 2300kg |
| Diesel engine | 42KW Yunnei engine |
Machine Advantages
(1)Reliable Performance
Basing on the guideline of purchasing the critical auxiliary equipment internationally, the diesel engine, the hydraulic pump, the main valves, the motors, crawler reducers and key hydraulic spare parts are all adopted famous brands products at home and abroad.
(2)High Efficiency
With big torque, high power unit allocation and with reasonable structure design and advanced operation method , all these guarantee the drill rig’s high operation and performance efficiency.
(3)Environmental Protection
With lower pollution discharge of diesel engine, professional noise reducing design, the drill rig is suitable for urban operation and performance.
(4)Energy Saving
Adopting the advanced load sensitive control technique, the drill rig has reduced the power consumption and heat generation to the lowest level. With an elegant outline, compact structure, reliable performance and operation easily, it should be the priority equipment to be selected in the full hydraulic core drill rig of present domestic market.

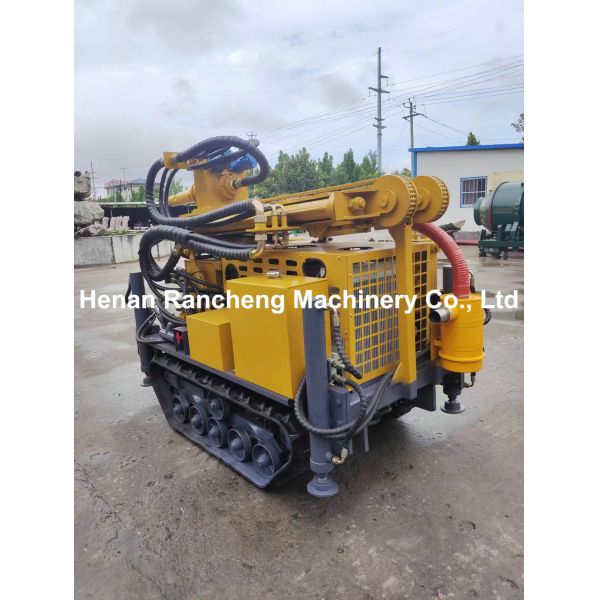

Machine Pictures
Company Information
Henan Rancheng Machinery Co.,LTD is one professional supplier drilling rigs in China ,we are dedicated in designing and manufacture water well drilling rig ,rotary drilling rig ,anchor drilling rig ,core drilling rig,DTH drilling rig ,solar pile driver,mud pump ,air compressor and drilling tools etc,we have advanced technology ,Modern equipment, first-class team and rich experience ,our products passed ISO9001 ,CE etc certificated ,they are exported to around 200 countries and areas in the world ,get very good feedbacks from our clients.
We Pursue the principle of "Customer First, Integrity First", we are sincerely expecting to cooperate with you!!!
Transportation
RCF150S can be loaded into a 20-foot container and transported by sea
|
|
